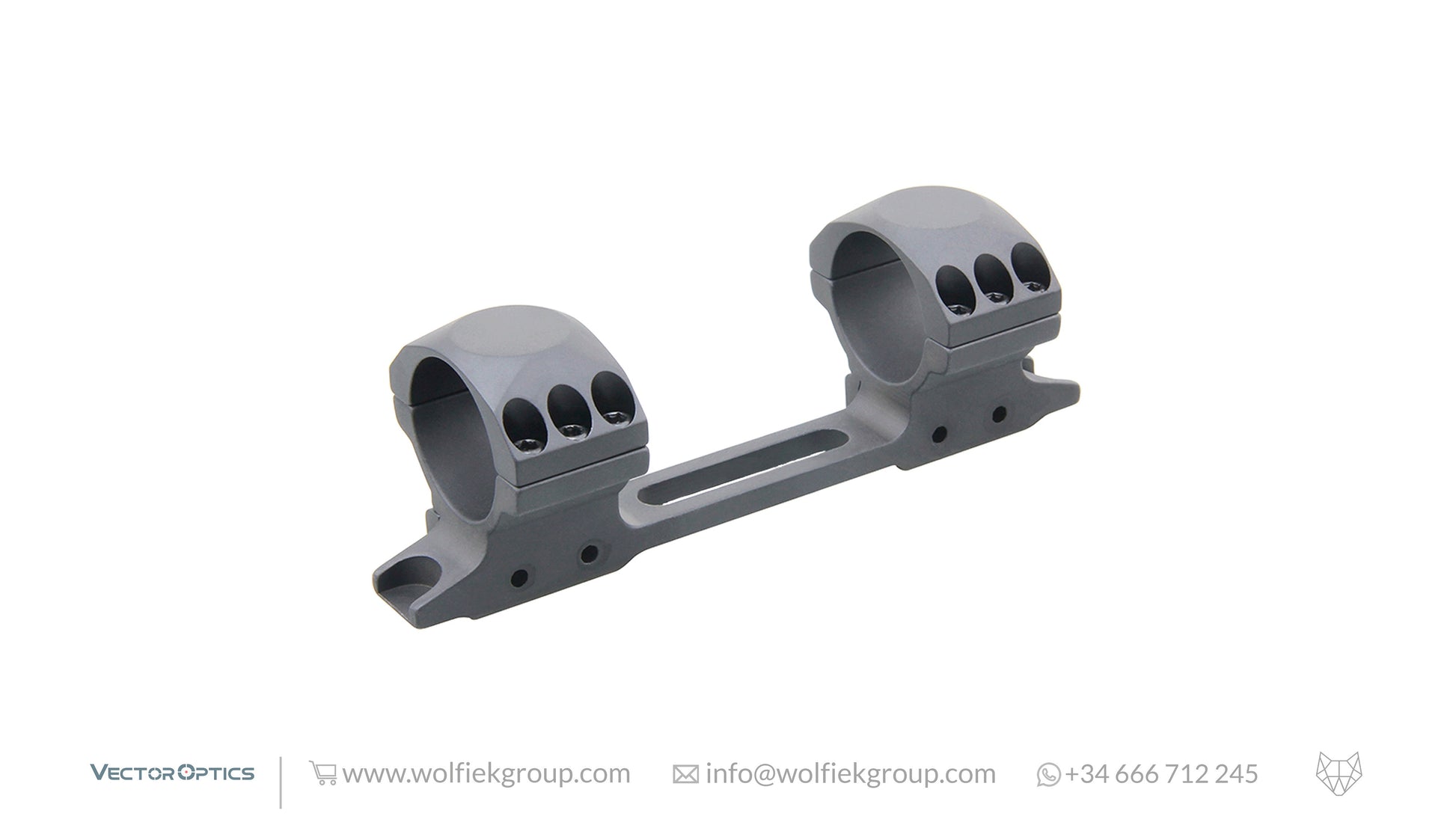

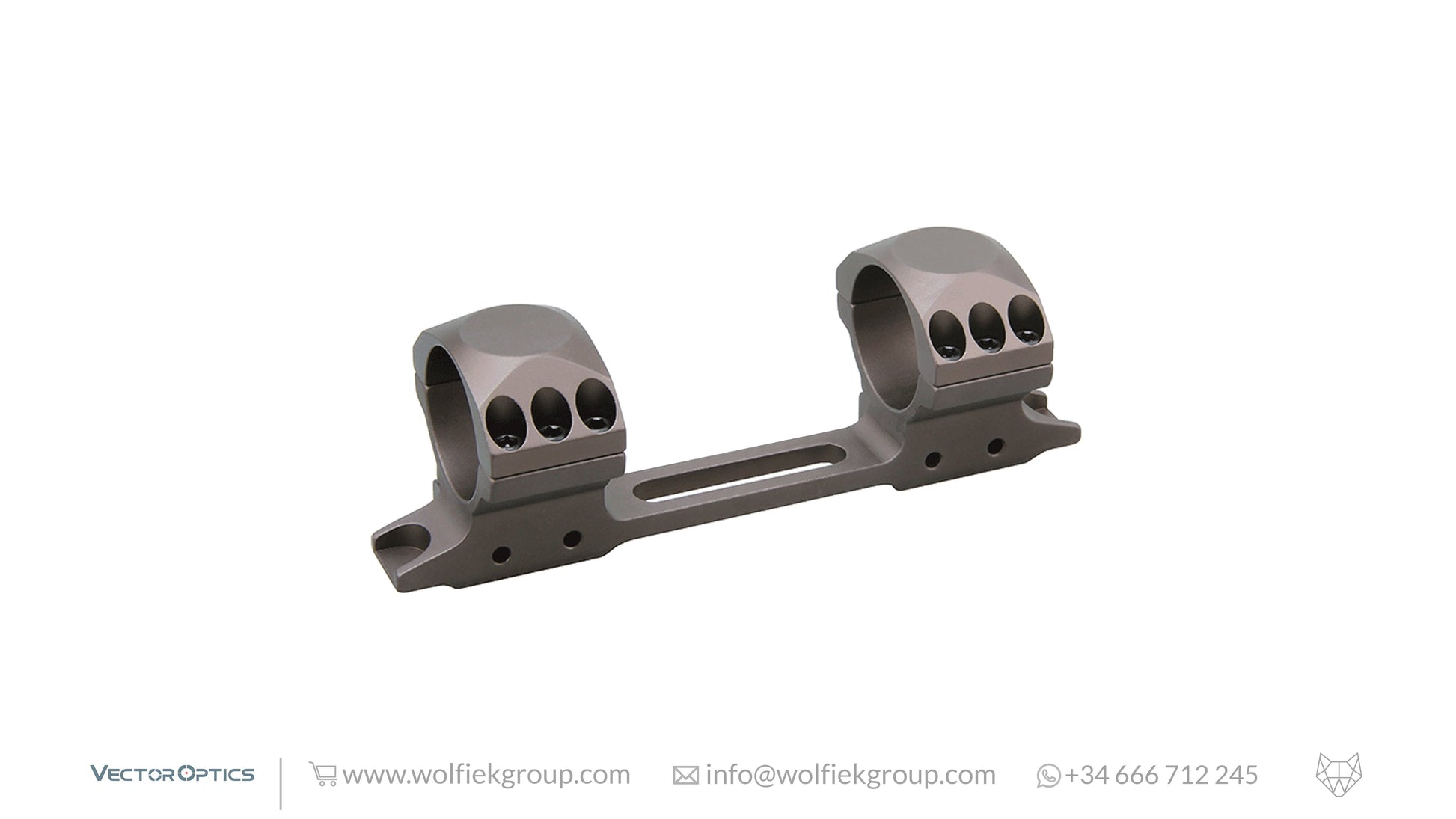

Vector Optics Dovetail Riflescope Mounts One-Piece - 30mm

The Vector Optics 30mm Low Profile Dovetail Scope Mount One Piece delivers a strong, reliable platform for securing your optics. Designed for 30mm scope tubes, this one-piece mount ensures precise alignment and consistent stability, minimizing the risk of shifting during use. Its low-profile design is perfect for shooters who prefer a streamlined setup with a closer-to-barrel optic position.

Built from high-strength 6061-T6 aluminum alloy, the mount offers durability and performance under demanding conditions. The dovetail mounting system allows quick, secure installation, making it an excellent choice for airgun and rimfire platforms. Whether in classic black or FDE finish, this mount combines rugged functionality with a refined look.

Technical Specifications

Item: XASR-3100 (Black) / XASR-F3100 (FDE)

Diameter: 30mm
Overall Length: 126mm / 5.0"
Overall Height: 28mm / 1.1" (bottom to center)
Mount Length: 126mm / 5.0"
Ring Width: 21mm / 0.8"
Gap Length: 84mm / 3.3"
Material: 6061-T6 aluminum alloy
Weight: 170g / 6.0oz
Mount: 11mm Dovetail
Finish: Black matte / Flat Dark Earth (FDE) matte
Screws per ring: 4
Construction: High-durability CNC machined aluminum alloy
Torque Guidance: Do not exceed 18" lbs on scope ring screws. Recommended 25in-lbs (max 45in-lbs) on mounting screws.
Designed for: Airguns, rimfire rifles, and low-recoil applications

Inside the Box

• Vector Optics 30mm Low Profile Dovetail Scope Mount (Black or FDE)
• Hex key
