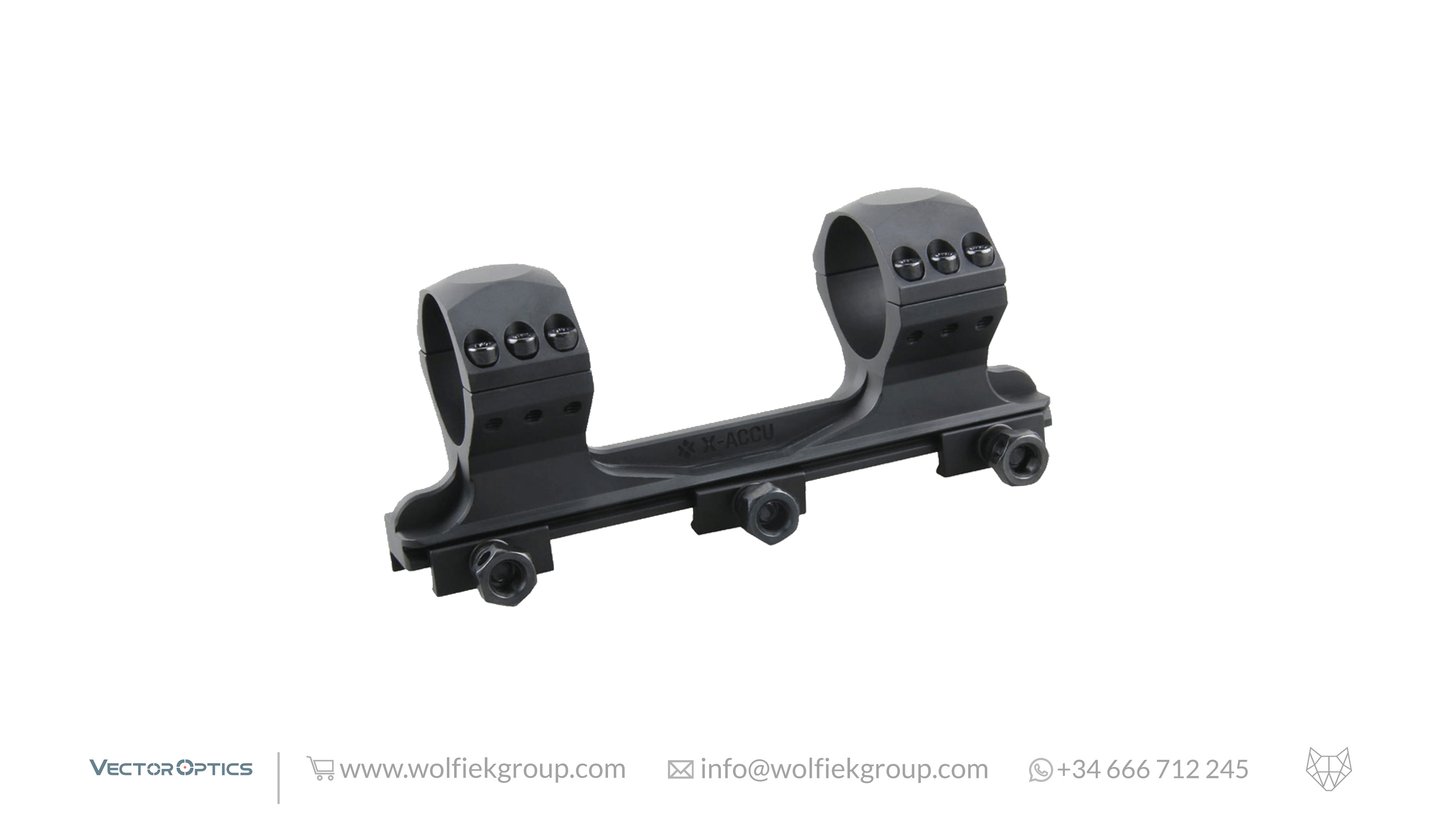

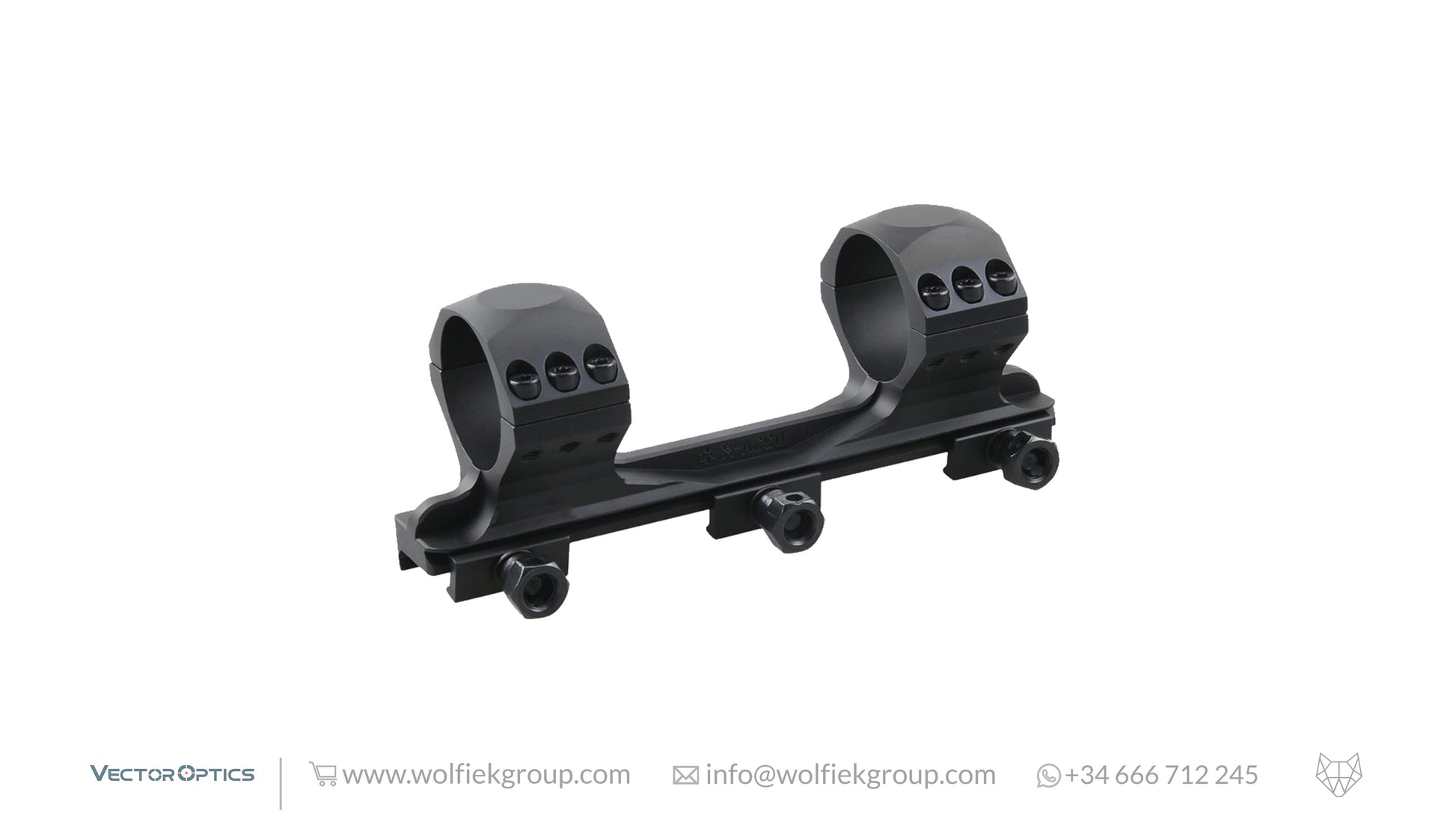

Vector Optics Weaver Riflescope Mounts One-Piece - 34mm

Item: 0 MOA Medium SCTM-60 - Hight: SCTM-57 |  20 MOA Medium: SCTM-61 - Hight: SCTM-58

The Vector Optics Scope Mounts Weaver 34mm ONE-PIECE is a robust and reliable mounting solution designed to securely attach 34mm diameter scopes to firearms equipped with Weaver or Picatinny rails.

Technical Specifications

• Diameter: 34mm
• Overall Length: 154mm / 6.1"
• Overall Height: 59mm / 2.3"
• Mount Length: 154mm / 6.1"
• Ring Width: 50mm / 2.0"
• Central Height: 35mm / 1.4", bottom to center
• Ring Length: 26mm / 1.0"
• Gap Length: 70mm / 2.7"
• Material: 6061-T6 aluminum alloy
• Weight: 250g / 8.8oz
• Mount: Picatinny
• Finish: Hard anodizing in black matte
• Screws per ring: 6
• High-durability aluminum alloy in black matte, designed for big recoil calibers
• Do not use over 18in of torque on the scope rings screws
• Suggest 25in (can accept max 45in) torque force for big nut when installing the mount on the picatinny rail
• 20MOA 6MIL Style and designed for hard and rigorous use

Inside The Box

• Vector Optics · Scope Mounts Weaver 34mm ONE-PIECE
• Hex key
